7520024 Electric locomotive 1116 181-9, ÖBB
Electric locomotive 1116 181-9, ÖBB
7520024ÖBBH0VIAC

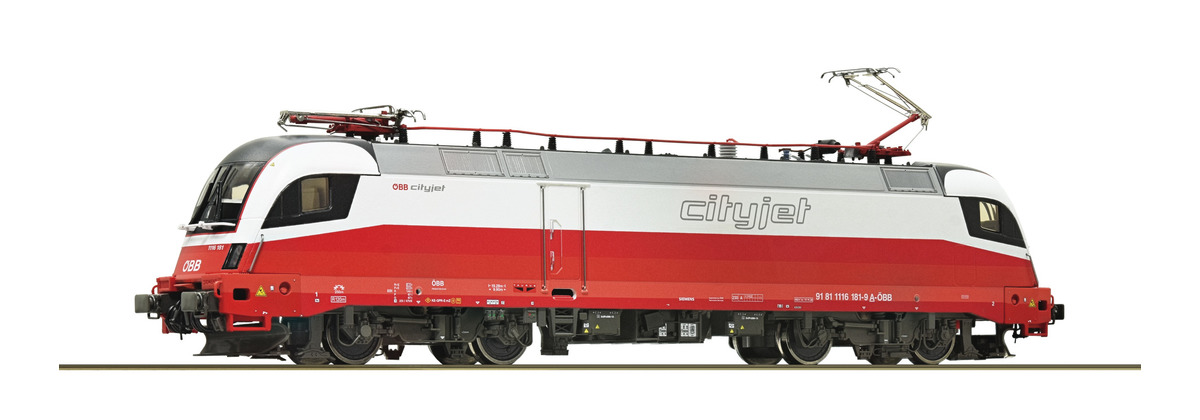

Electric locomotive 1116 181 of the Austrian Federal Railways.
■ Cityjet design
■ Current operating condition with black roof hood
■ Switchable high beam and individually switchable headlight or tail light in digital mode
■ Used in front of passenger and goods trains
■ Licensed ÖBB model
■ Z21 driver’s cab available
In 2019, the ÖBB initiated an upgrade programme for the renewal of double-decker trains (DOSTO). In this way, approx. 100 coaches are to be optimised to the modern Cityjet standard by 2023. The modernisation comprises amongst other things on-board WLAN, reupholstered seats, multi-purpose areas in each intermediate coach with more space for bicycles, prams and baggage as well as newly-designated quiet zones.
In May 2022, halfway through the running DOSTO upgrade programme, the electric locomotive 1116 181 was painted in the Cityjet-design. In this way, the ÖBB is sending an important signal advertising their attractive public transport offers, in particular for local commuter transport in Lower Austria.
Additional Information
| Coupling | NEM shaft 362 with close coupling mechanism |
| Minimum radius | 358 mm |
| Flywheel | yes |
| Number of driven axles | 3 |
| Number of axles with traction tyres | 2 |
| Article number | 7520024 |
| EAN | 9005033063269 |
| Scale | H0 |
| Epoch | VI |
| Railway Company | ÖBB |
| Head light | 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel |
| LED head light | yes |
| Additional light function | yes |
| Control | AC |
| Interface | Electrical interface for traction units PluX22 |
| Digital decoder | PluX22 |
| Decoder-Type | MS450P22 |
| Sound | yes |
| Buffer capacitor | yes |
| Length over buffer | 221 mm |
Spare parts
| Art. No.: | Description | Price: | |||
|---|---|---|---|---|---|
| 110407 | E-Lokführer - grau | 3,30 € |
|
||
| 110472 | Kanister + Pumpensatz | 4,30 € |
|
||
| 110474 | Puffer eckig - umbragrau | 1,80 € |
|
||
| 110490 | TS - Griffe Rh1116 u. Ä. - Niro | 3,30 € |
|
||
| 110493 | Hauptschalter - graubraun | 2,00 € |
|
||
| 110494 | Stützisolator kl. - graubraun | 1,80 € |
|
||
| 110496 | Überspannungsableiter - taubenblau | 1,80 € |
|
||
| 110498 | Dachleitung - feuerrot | 3,30 € |
|
||
| 110499 | Isolatorenverbindung - kupfer | 1,80 € |
|
||
| 111973 | Führerstand Rh1116 - grauweiß | 3,30 € |
|
||
| 112852 | Steuerungskasten - weißaluminium | 1,80 € |
|
||
| 113376 | Motordämpfer | 2,00 € |
|
||
| 114836 | GF-Schraube + M1.6x6 mm - schw | 1,80 € |
|
||
| 114850 | GF-Schraube + M1,6x4 mm | 1,80 € |
|
||
| 114966 | GF-Schraube M2x5 mm | 1,80 € |
|
||
| 115161 | SK-Schraube + M1,6x4 mm | 1,80 € |
|
||
| 115317 | SK-Schraube M1,6x5 mm - schwarz | 2,00 € |
|
||
| 115550 | Kurzkupplung - Vorentkupplung | 3,30 € |
|
||
| 115738 | Oberspannungs-Wandler lichtgr. | 1,80 € |
|
||
| 115978 | TS - Isolat.+Antenne - lichtgrau | 4,30 € |
|
||
| 120769 | TS - Daempfer 1+2 - umbragrau | 2,40 € |
|
||
| 122820 | Schneepflug - umbragrau | 3,30 € |
|
||
| 122822 | Schneckendeckel | 2,00 € |
|
||
| 122829 | Schneckensatz Z=2 m. K. Fstd.1 | 12,00 € |
|
||
| 122967 | Griff vorne seitlich - Niro | 1,80 € |
|
||
| 123163 | TS - LZB Antennenkasten umb.gr | 2,00 € |
|
||
| 123785 | Scheibenwischer li.+re. - schwarz | 3,30 € |
|
||
| 127630 | TS - Pufferbrust f.Betrieb 152 | 2,00 € |
|
||
| 129524 | Lautsprecher RA 15x11 DA 2403 | 12,00 € |
|
||
| 129664 | TS - Lichtleiter Rh1116/ES64 | 3,30 € |
|
||
| 129673 | TS - Gehäuse lack. - weißaluminium | 3,30 € |
|
||
| 129981 | TS - Fenster+Stirnlampe weissal | 10,60 € |
|
||
| 130003 | TS - Kupplung - umbragrau | 4,90 € |
|
||
| 130034 | TS - LZB Antennen+Antennebox | 3,30 € |
|
||
| 130040 | Getriebeboden AC - umbragrau | 4,90 € |
|
||
| 135882 | OElwanne 1116 bedr. - umbragrau | 2,40 € |
|
||
| 135884 | TS - Lautsprecherbox + Halter | 6,00 € |
|
||
| 136442 | Ölleitung - weißaluminium | 1,80 € |
|
||
| 136487 | Pufferflansch l+r - umbragrau | 2,40 € |
|
||
| 136488 | Rohr rechts 1116 - umbragrau | 2,00 € |
|
||
| 136913 | Grundrahmen 1116 NEU - umbragr | 17,50 € |
|
||
| 137826 | Kontakthalter m.Litzen - umbragrau | 6,00 € |
|
||
| 138829 | Schneckensatz Z=2 m. K. Fstd.2 | 12,00 € |
|
||
| 140530 | Batteriekasten 1+2 Licht i.Du. | 3,30 € |
|
||
| 141152 | Antenne VECT./1116 - basaltgrau | 1,80 € |
|
||
| 141162 | Pufferflansch li+re Vitrine | 2,00 € |
|
||
| 144075 | TS - LED-Abdeckung Rh1116 | 3,30 € |
|
||
| 144639 | Dach Rh1116 lack. - umbragrau | 3,30 € |
|
||
| 145560 | M-Kontaktfeder D=2,4 L=14,3 mm | 2,00 € |
|
||
| 145561 | M-Kontaktfeder D=2,4 L=7,15 mm | 2,00 € |
|
||
| 146017 | Antenne 2 Rh1116 - umbragrau | 1,80 € |
|
||
| 146018 | Kardanwelle KM Rh1116 | 2,00 € |
|
||
| 146020 | Motor KM 2xSchwungm.+Kardansch | 47,50 € |
|
||
| 146021 | Motordistanzrahmen KN Rh1116 | 2,40 € |
|
||
| 146027 | Platine kpl. 1116 KM Pl.22 So. | 40,40 € |
|
||
| 146028 | Radsatz m.2 Haftr. m.Zahnr. AC | 10,60 € |
|
||
| 146029 | Radsatz o. Haftr. o. Zahnr. AC | 7,20 € |
|
||
| 146030 | Radsatz m. Zahnr. o. Haftr. AC | 8,40 € |
|
||
| 147377 | Sounddecoder MS450 Pl.22 ZIMO | 179,00 € |
|
||
| 147619 | Getriebesatz 2-tlg. - umbragrau | 8,40 € |
|
||
| 147644 | Getriebeboden 1116 - umbragrau | 4,90 € |
|
||
| 149176 | Pufferbrust 1116 bedr. 7510024 | 2,40 € |
|
||
| 149177 | Pufferschuerzen l+b 7510024 | 3,30 € |
|
||
| 149178 | DG-Blende l+b 7510024 - umb.gr | 10,60 € |
|
||
| 149179 | Gehaeuse kpl.7510024-1116 181-9 | 147,00 € |
|
||
| 149180 | Zuruestbeutel7510024-1116 181-9 | 15,70 € |
|
||
| 149181 | Frontgriffstange 1116 cityjet | 2,00 € |
|
||
| 200116 | TS - Modulisolierung | 2,40 € |
|
||
| 40066 | Traction tyre set DC | 6,90 € |
|
||
| 85353 | Stromabnehmer Typ 8 - niro DB | 28,60 € |
|
||
| 86030 | Schleifer 42mm o. Halteklammer | 14,10 € |
|
||
| 86108 | Beilagscheibe 2,1x4 / 0,2 mm | 1,80 € |
|
||
| 86208 | Zugfeder D=2,5 L=2,7/5,8 mm | 1,80 € |
|
||
| 86413 | Schneckenzahnrad Z=19re./17ge. | 2,40 € |
|
||
| 86418 | Zahnrad Z=17 M0,4 gerade | 2,40 € |
|
||
| 86702 | Schnecke Z=2 D=7,4 M0,5 rechts | 3,30 € |
|
||
| 87129 | Kardanschale kurz 1,5 mm | 2,00 € |
|
||
| 89246 | Standardkupplung | 3,30 € |
|
||
| 89749 | Lager f. Schneckenachse D=2H7 | 3,30 € |
|
||
| 94953 | Zahnrad Z=12 M0,4 gerade - gelb | 1,80 € |
|
||
| 96297 | VCI-Rostschutzfolie 160x200 mm | 2,40 € |
|
||
| 96393 | Hartkartonsch.UT 336x99x48 mm | 8,40 € |
|
||
| 96394 | Hartkartonsch.OT 336x99x48 mm | 8,40 € |
|
