70527 Electric locomotive 1116 088-6 ÖBB
Electric locomotive 1116 088-6 ÖBB
70527ÖBBH0VIDCC
364,90€

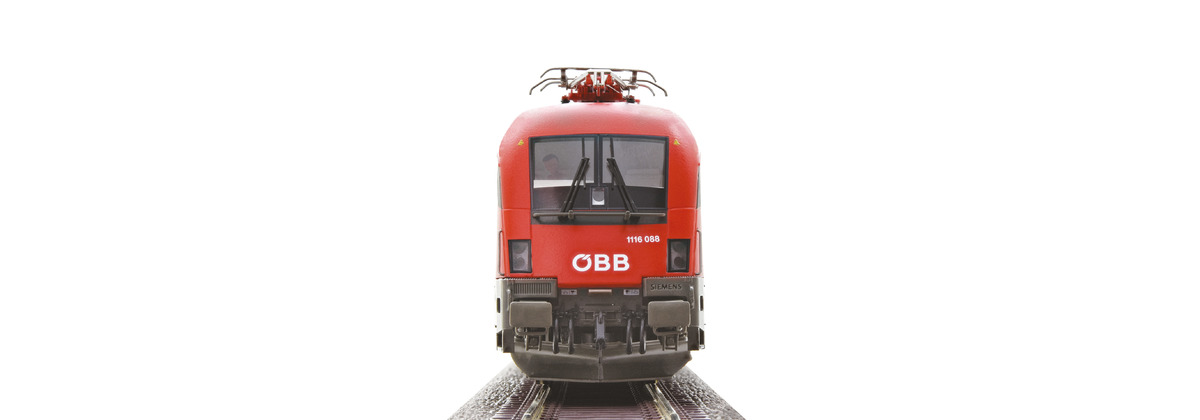

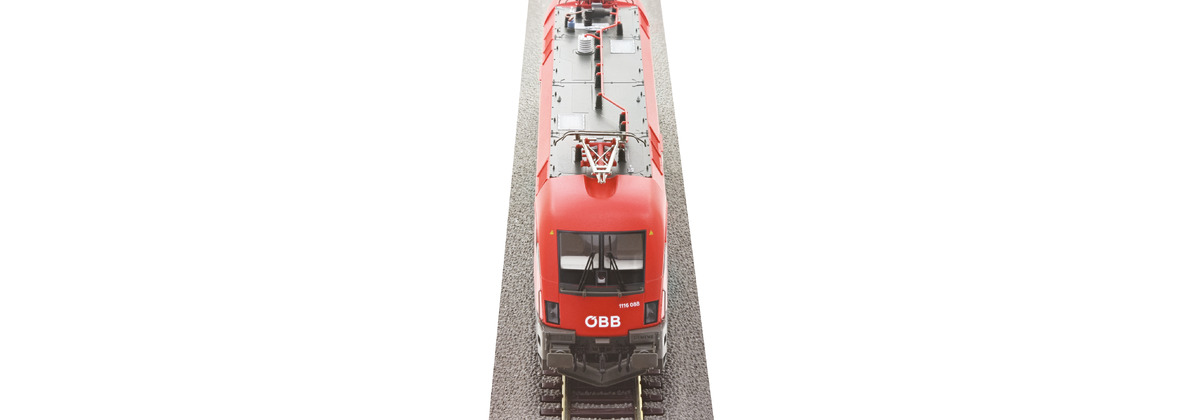

Electric locomotive 1116 088 of the Österreichische Bundesbahnen.
■ Current operating condition with new pictograms and ETCS lettering prints
■ Switchable high beam and individually switchable headlight/tail light in digital mode
■ With 16 BIT SOUND for the perfect sound experience
■ Z21 driver’s cab available
The commissioning of the first “Taurus” locomotive series 1016 in the summer of 1999 ushered in a phase of rapid modernisation for the Austrian electric locomotive fleet. This general-purpose locomotive was also procured in a dual system version for AC operation with 15 kV/16.7 Hz as well as 25 kV/50 Hz. A total of 282 series 1116 locomotives were put into operation until 2006. They are approved for 230 km/h. Their power output is 6,400 kW.
Additional Information
Coupling | NEM shaft 362 with close coupling mechanism |
Minimum radius | 358 mm |
Flywheel | yes |
Number of driven axles | 4 |
Number of axles with traction tyres | 1 |
Article number | 70527 |
Scale | H0 |
Epoch | VI |
Railway Company | ÖBB |
US Adaptor | Sommerneuheiten |
Head light | 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel |
LED head light | yes |
Additional light function | yes |
Control | DC Digital |
Interface | Electrical interface for traction units PluX22 |
Digital decoder | PluX22 |
Decoder-Type | MS450P22 |
Sound | yes |
Buffer capacitor | yes |
Length over buffer | 221 mm |
Spare parts
Art. No.: | Description | Price: | |||
---|---|---|---|---|---|
110407 | E-Lokführer - grau | 2,75 € | |||
110472 | Kanister + Pumpensatz | 3,55 € | |||
110474 | Puffer eckig - umbragrau | 1,45 € | |||
110490 | TS - Griffe Rh1116 u.ae. - Niro | 2,75 € | |||
110493 | Hauptschalter - graubraun | 1,65 € | |||
110494 | Stuetzisolator kl. - graubraun | 1,45 € | |||
110496 | UEberspannungsableiter - blau | 1,45 € | |||
110498 | Dachleitung - feuerrot | 2,75 € | |||
110499 | Isolatorenverbindung - kupfer | 1,45 € | |||
111973 | Fuehrerstand - grauweiss | 2,75 € | |||
112852 | Steuerungskasten - weissalumin. | 1,45 € | |||
113376 | Motordaempfer | 1,65 € | |||
114836 | GF-Schraube + M1!6x6 mm - schw | 1,45 € | |||
114850 | GF-Schraube + M1!6x4 mm | 1,45 € | |||
114966 | GF-Schraube M2x5 mm | 1,45 € | |||
115161 | SK-Schraube + M1!6x4 mm | 1,45 € | |||
115550 | Kurzkupplung - Vorentkupplung | 2,75 € | |||
115738 | Oberspannungs-Wandler lichtgr. | 1,45 € | |||
115978 | TS - Isolat.+Antenne - lichtgr | 3,55 € | |||
120769 | TS - Daempfer 1+2 - umbragrau | 1,95 € | |||
122820 | Schneepflug - umbragrau | 2,75 € | |||
122822 | Schneckendeckel | 1,65 € | |||
122829 | Schneckensatz Z=2 m. K. Fstd.1 | 10,40 € | |||
122967 | Griff vorne seitlich - Niro | 1,45 € | |||
123785 | Scheibenwischer li.+re. - schw | 2,75 € | |||
127630 | TS - Pufferbrust f.Betrieb 152 | 1,65 € | |||
129664 | TS - Lichtleiter Rh1116/ES64 | 2,75 € | |||
129673 | TS - Gehaeuse lack. - weissalum. | 2,75 € | |||
129981 | TS - Fenster+Stirnlampe weissal | 8,80 € | |||
130003 | TS - Kupplung - umbragrau | 4,07 € | |||
130034 | TS - LZB Antennen+Antennebox | 2,75 € | |||
130035 | Frontgriffstange - umbragrau | 1,65 € | |||
135882 | OElwanne 1116 bedr. - umbragrau | 1,95 € | |||
135884 | TS - Lautsprecherbox + Halter | 5,00 € | |||
136442 | OElleitung - weissaluminium | 1,45 € | |||
136487 | Pufferflansch l+r - umbragrau | 1,95 € | |||
136488 | Rohr rechts 1116 - umbragrau | 1,65 € | |||
136913 | Grundrahmen 1116 NEU - umbragr | 15,20 € | |||
137826 | Kontakthalter m.L. - umbragrau | 5,00 € | |||
138829 | Schneckensatz Z=2 m. K. Fstd.2 | 10,40 € | |||
141152 | Antenne VECT./1116 - bas.grau | 1,45 € | |||
141162 | Pufferflansch li+re Vitrine | 1,65 € | |||
144075 | TS - LED-Abdeckung Rh1116 | 2,75 € | |||
144639 | Dach Rh1116 lack. - umbragrau | 2,75 € | |||
144838 | Zuruestbeutel - OEBB Rh1116 | 13,60 € | |||
145560 | M-Kontaktfeder D=2!4 L=14!3 mm | 1,65 € | |||
145561 | M-Kontaktfeder D=2!4 L=7!15 mm | 1,65 € | |||
146015 | Pufferbrust Rh1116 bedr. | 1,95 € | |||
146016 | TS - Pufferschuerzen l+b 70502 | 2,75 € | |||
146017 | Antenne 2 Rh1116 - umbragrau | 1,45 € | |||
146018 | Kardanwelle KM Rh1116 | 1,65 € | |||
146020 | Motor KM 2xSchwungm.+Kardansch | 42,40 € | |||
146021 | Motordistanzrahmen KN Rh1116 | 1,95 € | |||
146023 | Radsatz 4 m.Zahnrad o.Haftring | 7,00 € | |||
146024 | Radsatz 2/3 m.Zahnr. o.Haftr. | 8,80 € | |||
146025 | Radsatz 1 m.Haftring m.Zahnrad | 8,80 € | |||
146800 | DG-Blende l+r 1116 lack.+bedr. | 8,80 € | |||
147619 | Getriebesatz 2-tlg. - umbragr. | 7,00 € | |||
147644 | Getriebeboden 1116 - umbragrau | 4,07 € | |||
148635 | Batteriekasten 1+2 bedr. 70527 | 5,00 € | |||
148636 | Gehaeuse kpl.70527 - 1116 088-6 | 139,40 € | |||
40066 | Traction tyre set DC | 6,90 € | |||
85353 | Stromabnehmer Typ 8 - niro DB | 24,80 € | |||
86108 | Beilagscheibe 2!1x4 / 0!2 mm | 1,45 € | |||
86208 | Zugfeder D=2!5 L=2!7/5!8 mm | 1,45 € | |||
86413 | Schneckenzahnrad Z=19re./17ge. | 1,95 € | |||
86418 | Zahnrad Z=17 M0!4 gerade | 1,95 € | |||
86702 | Schnecke Z=2 D=7!4 M0!5 rechts | 2,75 € | |||
87129 | Kardanschale kurz 1,5 mm | 1,65 € | |||
89246 | Standardkupplung | 2,75 € | |||
89749 | Lager f. Schneckenachse D=2H7 | 2,75 € | |||
94953 | Zahnrad Z=12 M0!4 ger. - gelb | 1,45 € | |||
96297 | VCI-Rostschutzfolie 160x200 mm | 1,95 € | |||
96393 | Hartkartonsch.UT 336x99x48 mm | 7,00 € | |||
96394 | Hartkartonsch.OT 336x99x48 mm | 7,00 € |
