70160 Electric locomotive 1631, NS


Electric locomotive 1631, NS

70160
NSH0IVDC
Discontinued, not available

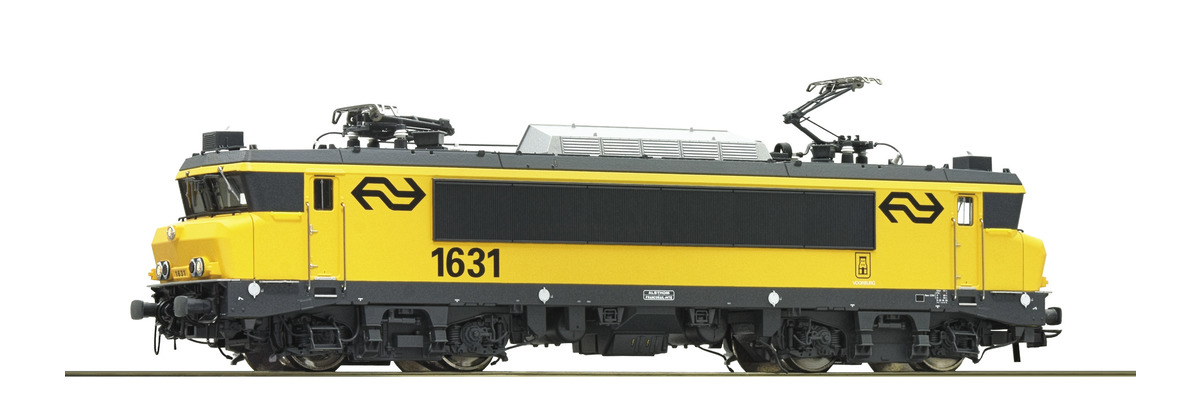

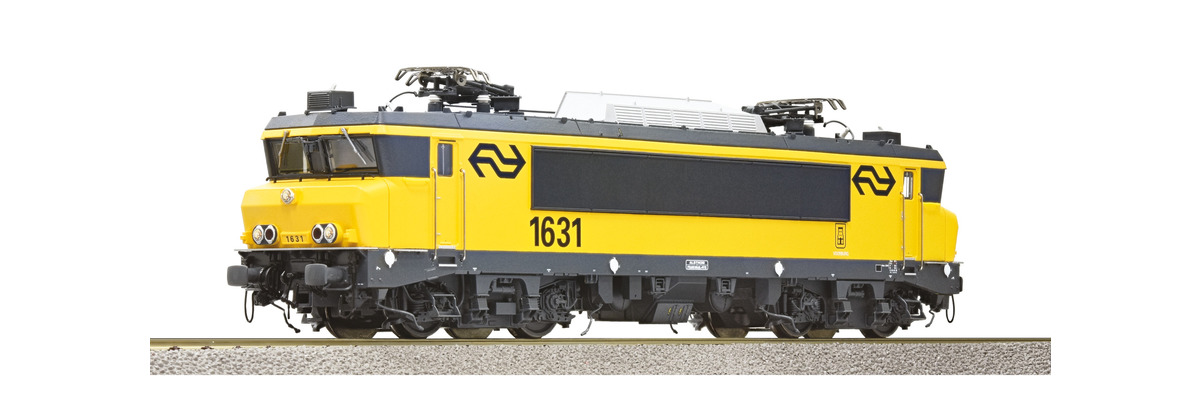

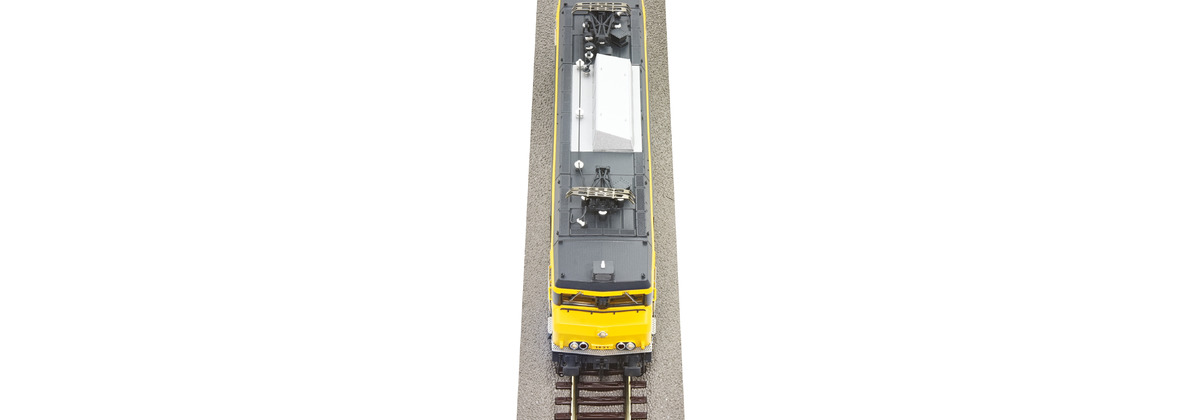

Electric locomotive 1631 of the Dutch State Railways.



New construction 2022!

■ Model without air conditioning
■ With signal horn box
■ Newly developed pantographs with innovative fastenings
■ Many extra-applied plug-in parts partially designed with etching technology

The NS bought four-axle electric locomotives series 1600 based on the French electric locomotives series BB 7200. When they were launched in 1981, they were the most powerful locomotives in the NS fleet. With a service weight of 83 t, they had a power output of 4,540 kW and reached a top speed of 140 km/h.


Additional Information

General data
Coupling NEM shaft 362 with close coupling mechanism
Minimum radius 358 mm
Flywheel yes
Number of driven axles 4
Number of axles with traction tyres 1
Article number 70160
Scale H0
Epoch IV
Railway Company NS
Electrical
Head light 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel
LED head light yes
Additional light function yes
Control DC Analog
Interface Electrical interface for traction units PluX22
Measurements
Length over buffer 201 mm

Downloads

Use-Instructions (DE)
Spare part list (DE)

Spare parts
